LVM monitoring

XorMon NG presents LVM configuration of virtual machines where is installed OS agent.
So far (XorMon NG v1.9.0) is supported AIX OS agent only.
It requires AIX / Linux OS agent 8.1.0+.
This feature will be available on Linux, Solaris in the future releases.

Presented are:
  • Volume group
  • Filesystem
  • Volume ID of SAN attached volumes (direct or via NPIV)
  • Disk
  • Storage name, pool and volume (if storage is being monitored as well)
You can find it under each virtual machine (LPAR).
Data is represented in:
  • Table
  • Topology graph

Examples

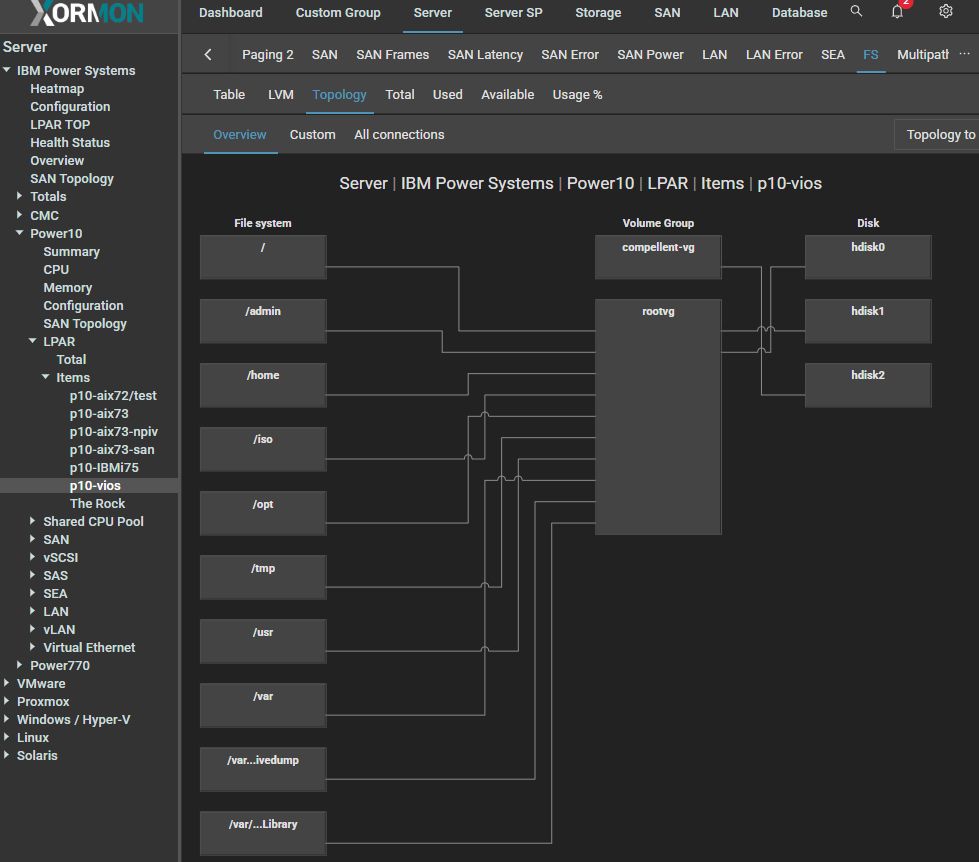

Topology
AIX LVM monitoring

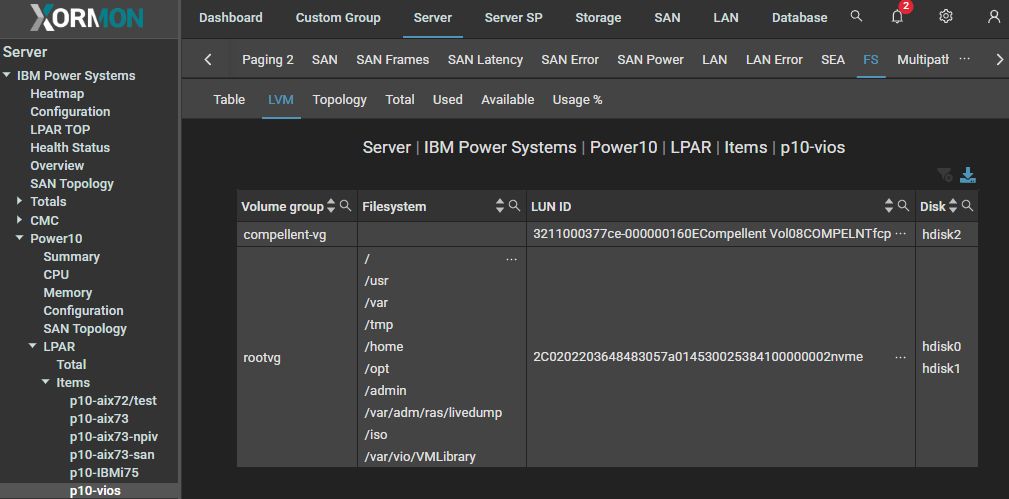

Table
AIX LVM monitoring table

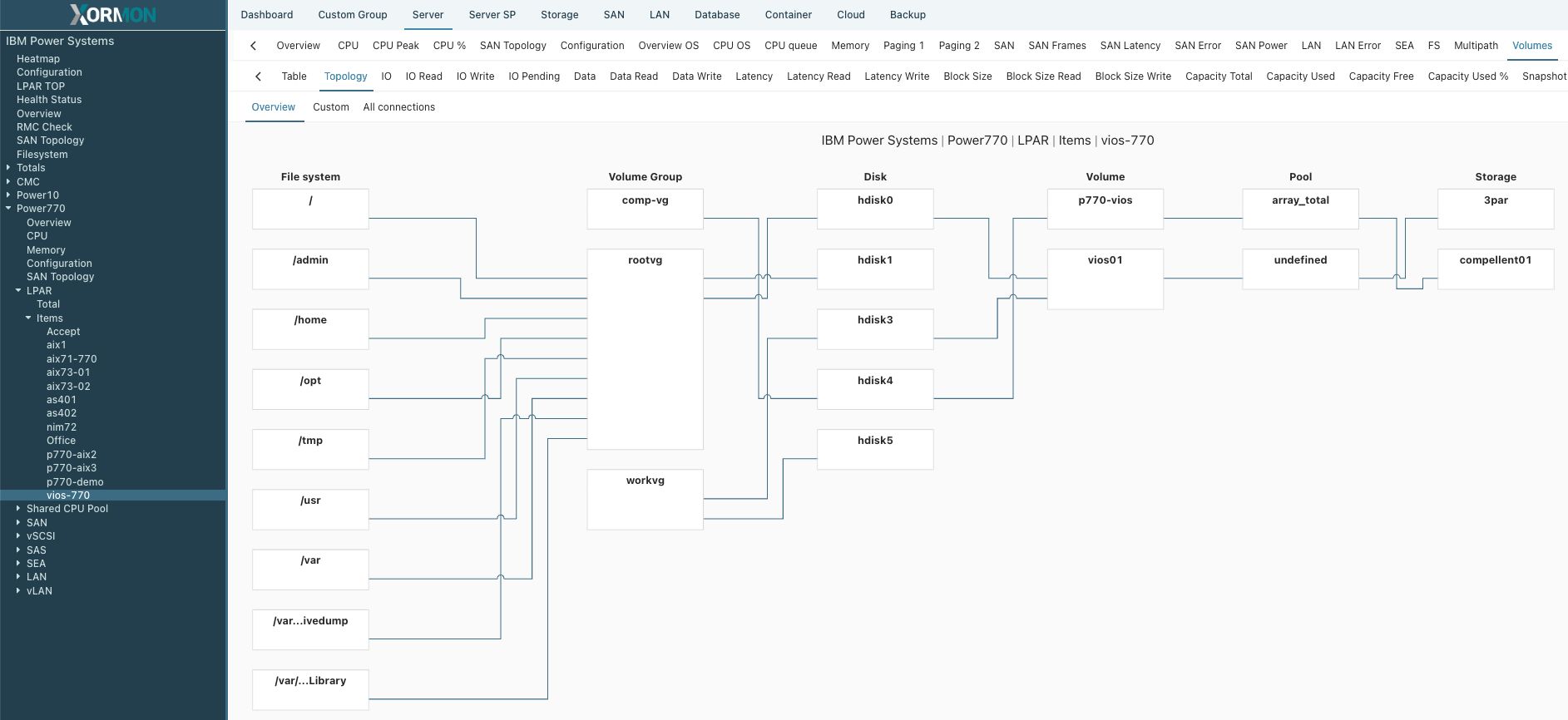

Topology with storage mapping
AIX LVM monitoring storage
