Server Service Processor

Data is obtained from Lenovo XClarity via its REST API.

Monitored scope

  • Health status:
    • Chassis
    • System
    • Service Processor
  • Resource Utilization
    • CPU Physical Usage
    • Memory Bus Usage
    • I/O Bus Usage
  • Power consumption total
  • Each Power supply
  • Temperature sensors:
    • CPU 1
    • CPU 2
    • System Board Exhaust Temp
    • System Board Inlet Temp
  • Server configuration:
    • Chassis
    • System
    • Service Processor
Data is obtained from Dell iDRAC via its REST API.

Monitored scope

  • Health status:
    • Chassis
    • System
    • Service Processor
  • Resource Utilization
    • CPU Physical Usage
    • Memory Bus Usage
    • I/O Bus Usage
  • Power consumption total
  • Each Power supply
  • Temperature sensors:
    • CPU 1
    • CPU 2
    • System Board Exhaust Temp
    • System Board Inlet Temp
  • Server configuration:
    • Chassis
    • System
    • Service Processor

Examples

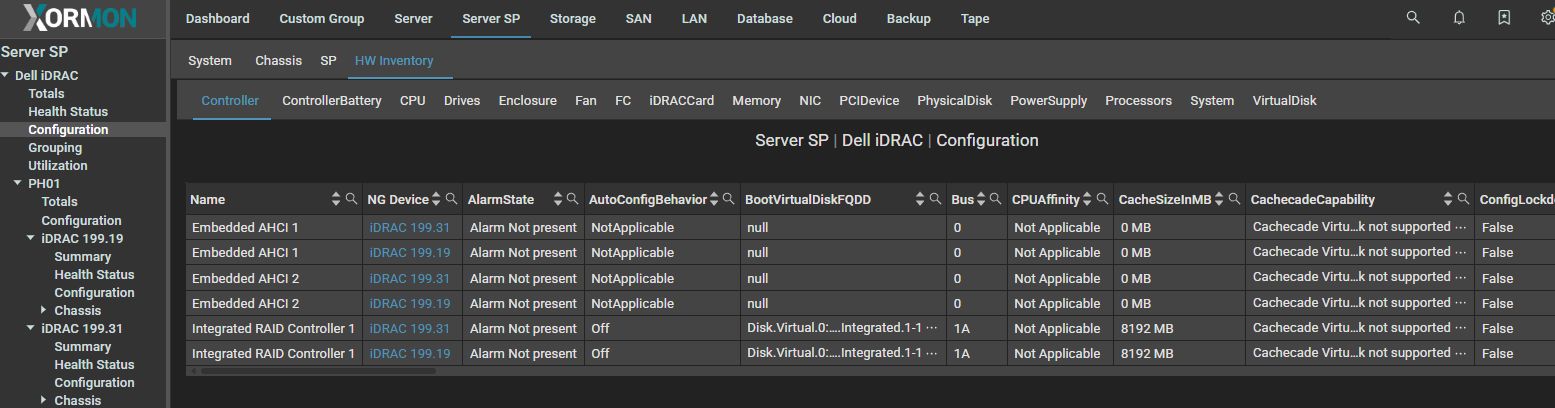

Dell iDRAC: Server service processor monitoring

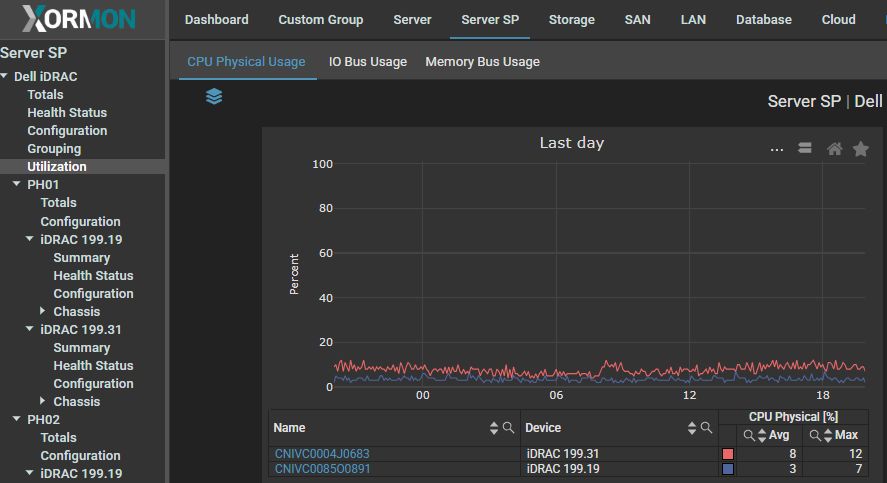

Dell iDRAC: Server service processor monitoring

Data is obtained from HPE iLO via its REST API.
Supported is iLO4 FW 2.30+, which was apparenty introduced on HPE gen9 servers.
iLO5+ is not supported yet, there are some minor changes in the API, it will come by the end of June 2025, the enhanced code will be available as a patch on the install page.

Monitored scope

  • Health status:
    • Chassis
    • System
    • Service Processor
  • Resource Utilization
    • CPU Physical Usage
    • Memory Bus Usage
    • I/O Bus Usage
  • Power consumption total
  • Each Power supply
  • Temperature sensors:
    • 01-Inlet ambient
    • 02-CPU 1
    • 03-CPU 2
    • 27-Front ambient
  • Server configuration:
    • Chassis
    • System
    • Service Processor

Examples

Healt Status
Server service processor monitoring health status

Power consumption
Server service processor monitoring Power consumption

Power supply
Server service processor monitoring Power supply

Temperature
Server service processor monitoring Temperature

Configuration
Server service processor monitoring Configuration
