XorMon is able to detect and vcisualize in the Topology diagrams mapping between IBM FlashSystem mdisks and back-end attached storage volumes.

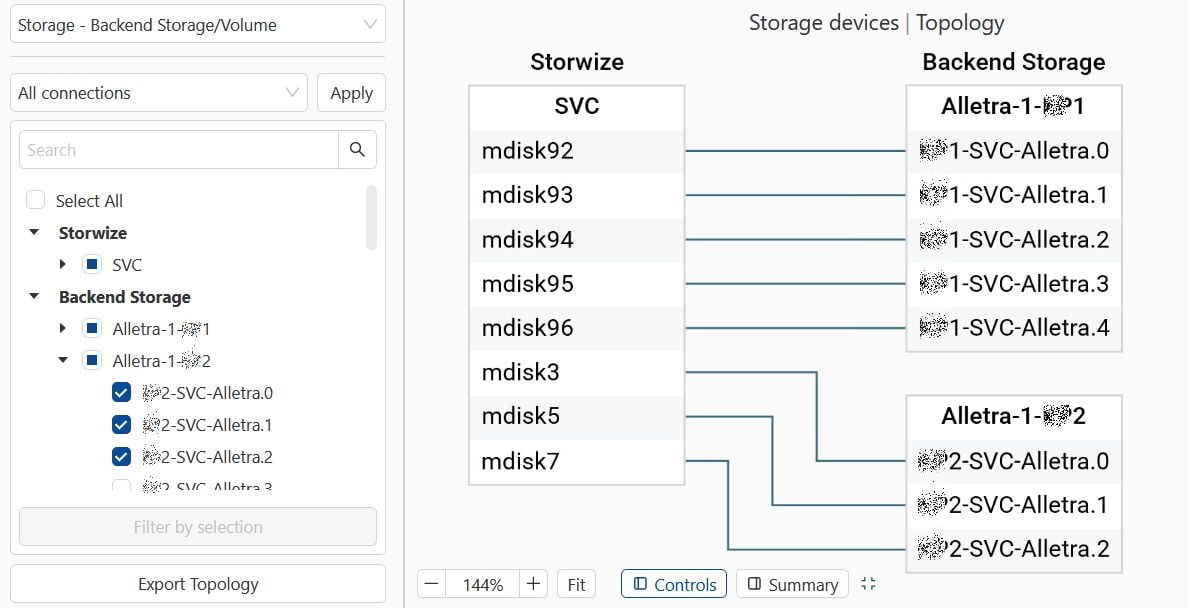

Here is a example of single IBM FlashSystem called SVC, several of his mdisks and mapping to their HPE Alletra volumes:


You can find such topology at these places in XorMon:

• Settings ➡ Topology ➡ Storage
• Storage devices ➡ Topology
• Storage devices ➡ Storwize02 ➡ Mapping ➡ Topology tab
• Storage devices ➡ Storwize02 ➡ Managed disk ➡ Items ➡ MDisk1 ➡ Topology tab
• Storage devices ➡ Volume ➡ Items ➡ Volume ➡ Topology tab
