Shows graphical visualisation of SAN SFP IN/OUT Power in dBm.
These metrics are important in prediction of variour errors on the SAN.
It is supported only Brocade based switches, Cisco MDS does not have it as per Cisco support.

There are 3 levels available:

• Total level (table): UI ➡ SAN ➡ Total ➡ SFP power
• Switch level (graph): UI ➡ SAN ➡ Fabric ➡ Switch ➡ SFP power
• Port level (graph): UI ➡ SAN ➡ Fabric ➡ Switch ➡ Port ➡ SFP power

Examples

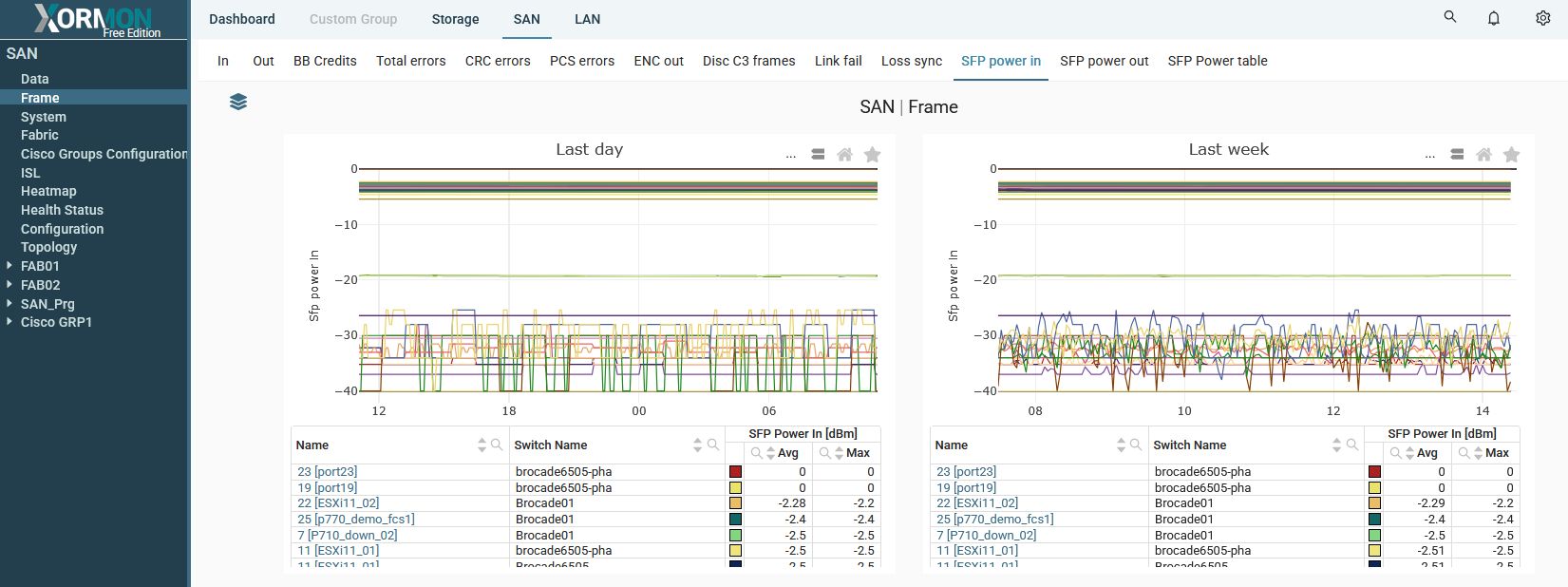

Total graph

Total table

Switch

Port

SFP Alerting

You can use native Brocade alerting capability for SFP alerting, this is not implemented

mapsrule --create monitor_ALL_16GSWL_SFPTXP_251 -monitor TXP -group ALL_16GSWL_SFP -value 251 -op LE -action SFP_MARGINAL,RASLOG -policy
mapsrule --clone defALL_16GSWL_SFPRXP_0200 -monitor RXP -group ALL_SFP -timebase none -op ge -value 200 -action raslog,email -policy new_conservative_policy

docs.broadcom.com/doc/FOS-82x-MAPS-UG
