Qumulo monitoring

Qumulo monitoring will be supported since Sep 2025 XorMon NG release
It is ready for testing. Anyone willing to test it? Contact us at support@xorux.com.

XorMon NG uses Qumulo API to access performance statistics and configuration data.

Storage connectivity

  • Allow access from the XorMon NG host to the Qumulo storage on port 8000
    API is accessible on Static as well as Floating IP addresses.

  • Create user for XorMon NG (example uses 'stor2rrd' user but use 'xormon' preferably)
    Log in to Qumulo management GUI

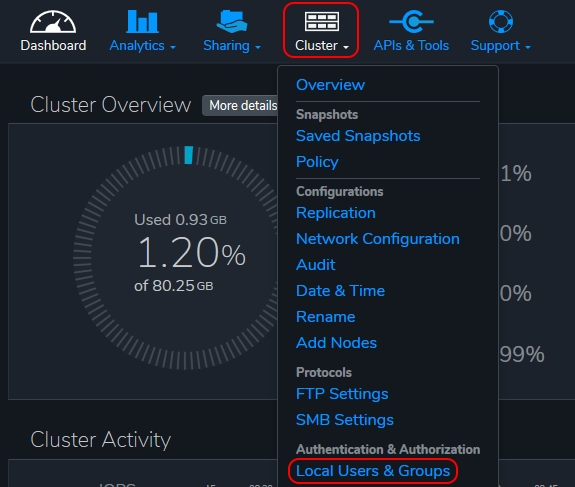

    Go to Cluster -> Local Users & Groups
    Note: since Qumulo 3.0.5 and higher you have to manually assign Observers role to STOR2RRD user
    Qumulo Storage Monitoring: User Management 1

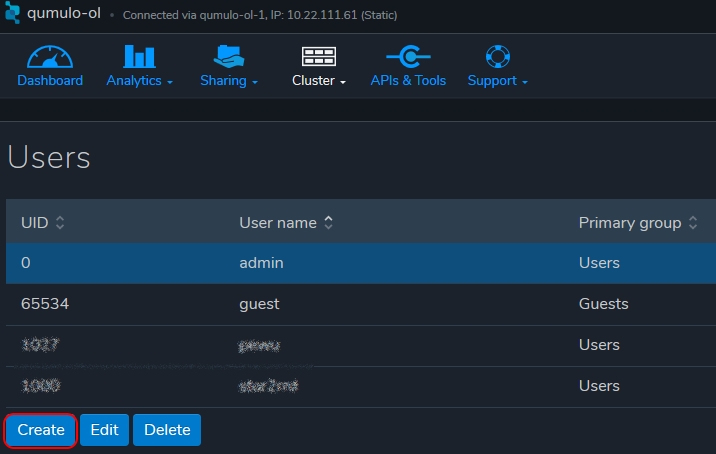

    Create new user in group Users

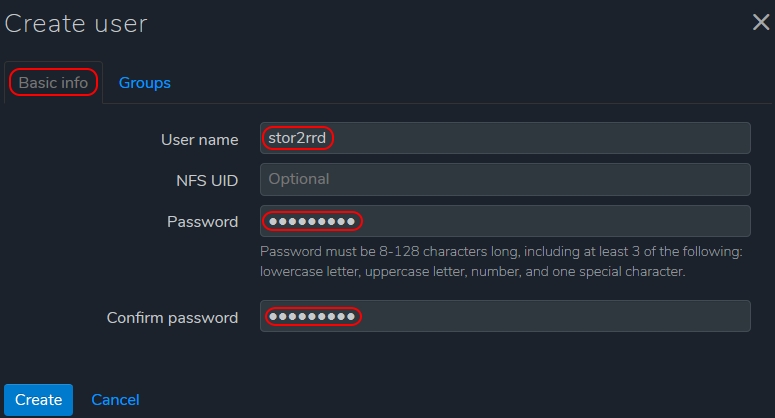

    Qumulo Storage Monitoring: User Management 2

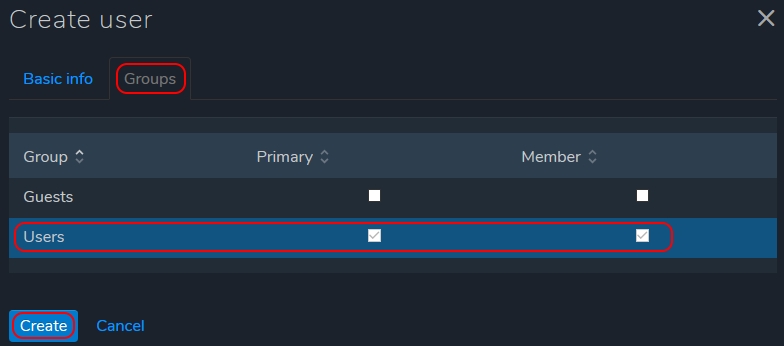

    Qumulo Storage Monitoring: User Management 3
    Qumulo Storage Monitoring: User Management 4

XorMon NG storage configuration

  • Add storage into configuration from the UI:
    XorMon NG UI ➡ Settings icon ➡ Device ➡ Storage ➡ New ➡ Vendor:device ➡ Qumulo

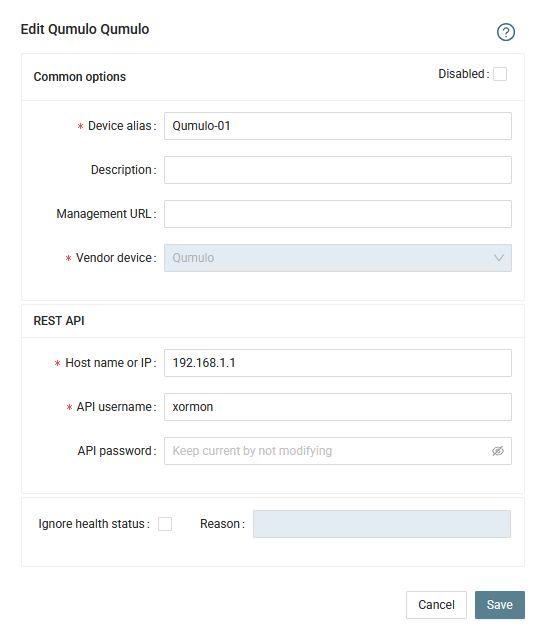

    Qumulo Storage monitoring

  • Run "Test" for configured storage device, it must show "OK"

  • Wait about 1 hour, then reload the web browser, you should see it in XorMon NG UI
