Windows troubleshooting

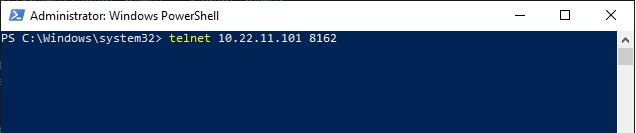

• Use telnet from Windows host and its PowerShell to test connection to XorMon server, on the Windows side
  Use hostname/IP of the XorMon server
  Bellow example shows that there is no connection, fix it on your network.

  PS C:\> telnet <XorMon server> 8162
  Connecting To <XorMon server>...Could not open connection to the host, on port 8162: Connect failed
  PS C:\>


  Install telnet client if it is not there in the admin window:

  PS C:\> Install-WindowsFeature -name Telnet-Client




• Check if the LPAR2RRD agent is schedulled like below from cmd line or from Windows Task Scheduller
  Check if thee is no any error in Windows Task Scheduller job.


  PS C:\> schtasks /query | findstr /i "LPAR"
    LPAR2RRD-agent-<XorMon server>-8162       2/10/2026 4:21:00 AM   Ready


• Check if there are logs in C:\Users\<user>\AppData\Local\Temp\comp_perfiles\<XorMon server>\
  If directry does not exist, then the agent has never been started up.
  You can check stderr.txt if any obvious errors

  PS C:\> cd C:\Users\admin\AppData\Local\Temp\comp_perfiles\<XorMon server>
  PS C:\Users\admin\AppData\Local\Temp\comp_perfiles\<XorMon server>> ls

      Directory: C:\Users\admin\AppData\Local\Temp\comp_perfiles\<XorMon server>

  Mode                LastWriteTime         Length Name
  ----                -------------         ------ ----
  -a----        2/10/2026   6:46 PM              0 stderr.txt
  -a----        2/10/2026   6:46 PM           1106 stdout.txt
  -a----        2/10/2026   6:41 PM            623 stdout_last.txt


• Check if LPAR2RRD agent files were copied into targed directory

  PS C:\> ls <whatever path to XorMon target dir>

      Directory: C:\Users\pahampl\xormon

  Mode                LastWriteTime         Length Name
  ----                -------------         ------ ----
  -a----        2/10/2026   3:36 PM              2 agent_config.txt
  -a----        9/12/2025   3:47 PM            137 Configuration.vbs
  -a----        9/12/2025   3:47 PM          29151 LPAR2RRD-agent-Configuration.ps1
  -a----        9/12/2025   3:47 PM          43352 LPAR2RRD-agent.ps1
  -a----        2/10/2026   3:36 PM            820 LPAR2RRD_Agent_Uninstall.ps1
  -a----        2/10/2026   3:36 PM             82 Uninstall.bat
